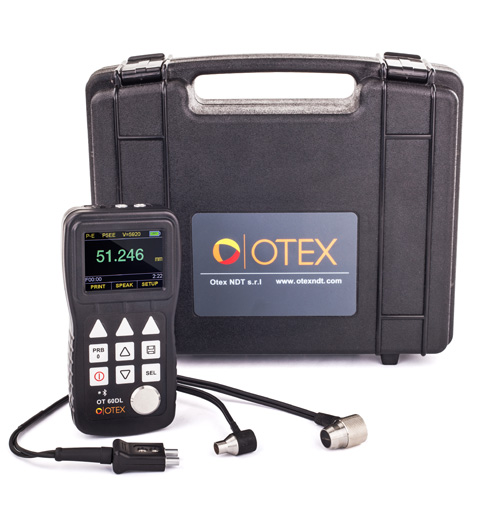

Multi-Mode Ultrasonic Thickness Gauge with Color TFT Display

The OT 60DL is a Multi-Mode Ultrasonic Thickness Gauge with resolution as high as 0.001mm.
The multi-mode feature of the OT 60DL allows the user to toggle between Pulse-Echo (Pit & Flaw) mode and Echo-Echo (through paint/coating)

Product specifications:

• Color TFT display (320x240 TFT LCD) with adjustable backlight
• Ignores coatings up to 1200 microns in Echo-Echo mode
• Measures thickness of material up to 600 mm in Pulse-Echo mode (for Steel)
• Probe zero function / Easy and fast calibration
• Sound velocity range : 1000 ~ 9999 m/s
• Resolution: 0.1 / 0.01 / 0.001 (Selectable)
• Accuracy: ± (0.5% thickness + 0.01) mm, depends on materials and conditions
• Metric/imperial unit selectable
• Communication: USB 2.0 & Bluetooth support
• Capability of Single point and Scan mode measurement
• Memory for 100 files (Up to 100 values for each file) of stored values
• Upper and lower limit can be pre-set (with Auto-alarm function)
• Outline dimensions: 150mm x 76 mm x 38mm
• Weight: 295 grams
