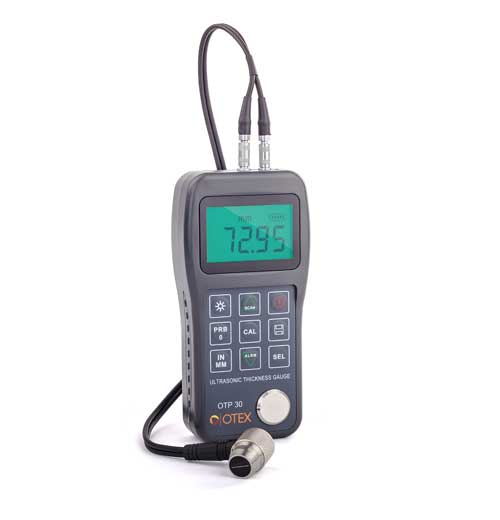

Digital Ultrasonic Thickness Gauge

The OTP 30 is a low-cost Ultrasonic Thickness Gauge combining ease of use with advanced features and capabilities. Resolution of 0.01mm allows accurate measurement of thin sections, and the gauge retains last calibration after switch-off.

Product specifications:

• 4.5 digits LCD with EL backlight
• Measures thickness of material up to 600 mm in Pulse-Echo mode (for Steel)
• Probe zero function / Easy and fast calibration
• Sound velocity range : 1000 ~ 9999 m/s
• Resolution: 0.1 / 0.01 mm (selectable)
• Accuracy: ± (0.5% thickness + 0.01) mm, depends on materials and conditions
• Metric/imperial unit selectable
• Communication: USB 1.1
• Capability of Single point and Scan mode measurement (7 readings per second for Single point measurement and 16 reading per second for Scan mode)
• Memory for 20 files (Up to 99 values for each file) of stored values
• Outline dimensions: 150mm x 74 mm x 32mm
• Weight: 245 grams
